Non-Refillable Cylinders for Specialty Gas Mixtures Transportable Cylinders



Non-Refillable Cylinders for Specialty Gas Mixtures

PP14
Convenient 14 liter cylinder for use with flammable pure or mixed gases.

Contents: 14 Liters
Pressure: 240 PSIG
Outlet Fitting: CGA 160
Weight: 1.5 lbs.
Dimensions (Inches): 3 x 11.5
DOT Classification: 4B240
Regulator: CPR-2 		PP17
17 liter cylinder for use with flammable pure or mixed gases.

Contents: 17 Liters
Pressure: 240 PSIG
Outlet Fitting: CGA 600
Weight: 1 lb.
Dimensions (Inches): 3 x 10.8
DOT Classification: DOT 39 NRC
Regulator: CPR-4

TAE
500 liter cylinder used for medical & non flammable pure gases.

Contents: 500 Liters
Pressure: 2000 PSIG
Outlet Fitting: Medical Yoke CGA 973
Weight: 13 lbs.
Dimensions (Inches): 4 3/16 x 23.25
DOT Classification: DOT 39
Regulator: Medical with Yoke

 PP25
500 liter cylinder used for medical & non flammable pure gases.

Contents: 554 Liters
Pressure: 2200 PSIG
Outlet Fitting: Standard CGA
Weight: 13 lbs.
Dimensions (Inches): 4 3/16 x 24.75
DOT Classification: DOT 39
Regulator: High Pressure (Standard)

PP58
58 liter treated aluminum cylinder with an aluminum diaphragm packless valve.  Offers one year guaranteed stability for mixtures containing Hydrogen Sulfide, Ethylene Oxide, Nitric Oxide, Nitrogen Dioxide and many toxic organic compounds.

Contents:58 Liters
Pressure: 480 PSIG
Outlet Fitting: CGA 180 or C-10-5/8"-18 UNF
Weight: 2 lbs.
Dimensions(inches):3.5 x 14.5 w/C-10; 3.5 x 16.25 w/CGA 180
DOT Classification: 39 NRC
Regulator: CPR-1 for CGA 180; CPR-5 or CPR-3 for C-10-5/8"-18 UNF

 PP75
74 liter treated aluminum cylinder with an aluminum diaphragm packless valve.  Offers one year guaranteed stability for mixtures containing Hydrogen Sulfide, Ethylene Oxide, Nitric Oxide, Nitrogen Dioxide and many toxic organic compounds

Contents: 74 Liters
Pressure: 480 PSIG
Outlet Fitting: CGA 180
Weight: 1.75 lbs.
Dimensions (Inches) 4 x 16.3
DOT Classification: 39 NRC
Regulator: CPR-1

PP85
140 liter cylinder for non-corrosive gases.

Contents: 140 Liters
Pressure: 2200 PSIG
Outlet Fitting: CGA 170
Weight: 5 lbs.
Dimensions (Inches): 3 1/4 x 15.5
D Classification: DOT 39
Regulator: CPR-1

 PP90
220 liter high pressure, high volume for non corrosive, non reactive, and selective flammable blends.

Contents: 275 Liters
Pressure: 2000 PSIG
Outlet Fitting: Standard CGA
Weight: 7 lbs.
Dimensions (Inches) 4 x 13.75
DOT Classification: NRC 2200
Regulator: High Pressure (standard)

PP100
105 liter high pressure, high volume cylinder for pure flammable gases and mixtures.  Ideal for calibration of remote safety and industrial hygiene monitors.

Contents: 105 Liters
Pressure: 1000 PSIG
Outlet Fitting: 5/8" - 18UNF
Weight: 2.3 lbs.
Dimensions (Inches): 3.25 x 13.8
DOT Classification: 39 NRC
Regulator: CPR-3 or CPR-5

 PP145
360 liter high pressure, high volume for non corrosive, non reacitve, and selective flammable blends.

Contents: 325 Liters
Pressure: 1000 PSIG
Outlet Fitting: Standard CGA
Weight: 10 lbs.
Dimensions (Inches): 4 X 18
DOT Classification: NRC 2200
Regulator: High Pressure (Standard)

2AL
40 liter aluminum cylinder used for low concentration reactive gas mixtures, which may not be stable in steel cylinders.

Contents: 40 Liters
Pressure: 480 PSIG
Outlet Fitting: CGA 180
Weight: 1.75 lbs.
Dimensions (Inches): 3 x 15.5
DOT Classification: 39 NRC
Regulator: CPR-1

 TA1
221 liter high volume, low pressure cylinder for non-flammable and non-corrosive gases.

Contents: 221 Liters
Pressure: 260 PSIG
Outlet Fitting: CGA 165 1/4" SAE
Flare 5 Degrees
Weight: 6.3 lbs.
Dimensions (Inches): 9 x 16.5
DOT Classification: 39 NRC
Regulator: CPR-2



Transportable Cylinders

We offer a full-line of transportable cylinders and related hardware.  Transportable cylinders offer a convenient, cost-effective way to utilize specialty gases when small quantities are required.  Many of our customers choose non-refillable cylinders.  Some of the advantages of non-refillable cylinders are:

  • Cost Efficient

  • Lightweight for portability

  • Less room requires (space savers)

  • No deposit, no demurrage, no rental

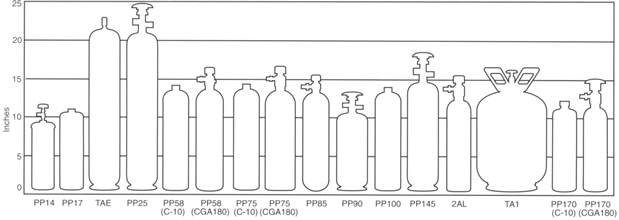

Cylinder Size Nominal Dimension
Diameter x Height (inches)		 Nominal
Tare Weight (lbs.)		 Pressure
(psig)		 Liters Steel
Aluminum		 DOT
Classification
Non-Refillable
PP14 3 X 11.5 1.5 240 14 STEEL 48240
PP17 3 X 10.8 1 240 17 STEEL 39NRC
TAE 4 X 23.25 13 2000 500 STEEL DOT39
PP25 4 X 24.75 13 2000 500 STEEL DOT39
PP58 3.5 X 14.5 (C-10) 1.75 500 58 ALUM 39NRC
PP58 3.5 X 16.25 (CGA 180) 1.75 500 58 ALUM 39NRC
PP75 4 X 14.8 (C-10) 1.75 480 75 ALUM 39NRC
PP75 4 X 16.3 (CGA 180) 1.75 480 75 ALUM 39NRC
PP85 3.25 X 15.5 5 2000 140 STEEL DOT39
PP90 4 X 13.75 7 2000 220 STEEL NRC2200
PP100 3.25 X 13.8 2.3 1000 103 STEEL 39NRC
PP145 4 X 18 10 2000 325 STEEL NRC2200
2AL 3 X 15.5 1.75 480 40 ALUM 39NRC
TA1 9 X 16.5 6.3 260 221 STEEL 39NRC
PP170* 3 X 12.3 (C-10) 2.3 1000 170 ALUM 3AL2216
PP170* 3 X 14.75(CGA 180) 2.3 1000 170 ALUM 3AL2216
*PP170 is a refillable cylinder.
